FESTO Pressure Regulator MS12

PRESSURE REGULATOR MS12-LR

All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors. The right solution for very task. In sizes 4, 6, 9 and 12.

Grid dimension 124 mm
High flow rate performance with minimal pressure drop
Good control characteristics with minimal pressure hysteresis and primary pressure compensation
With secondary exhausting
Lockable rotary knob
With or without pressure gauge
MS12-LR-…-PO: pneumatically actuated (pressure range determined by pilot regulator)
MS12-LR-…-PE6: electrically actuated (pilot control by proportional pressure regulator)
Sustainable operation thanks to reduced pressure level

Type codes

001	Series	006	Pressure gauge alternatives
MS	MS series		None
		VS	Cover plate
002	Size	A4	Adapter for EN pressure gauge 1/4, without pressure gauge
12	Grid dimension 124 mm
		007	Alternative pressure gauge scale
003	Function		MS pressure gauge
LR	Pressure regulator	PSI	psi
		MPA	MPa
004	Pneumatic connection

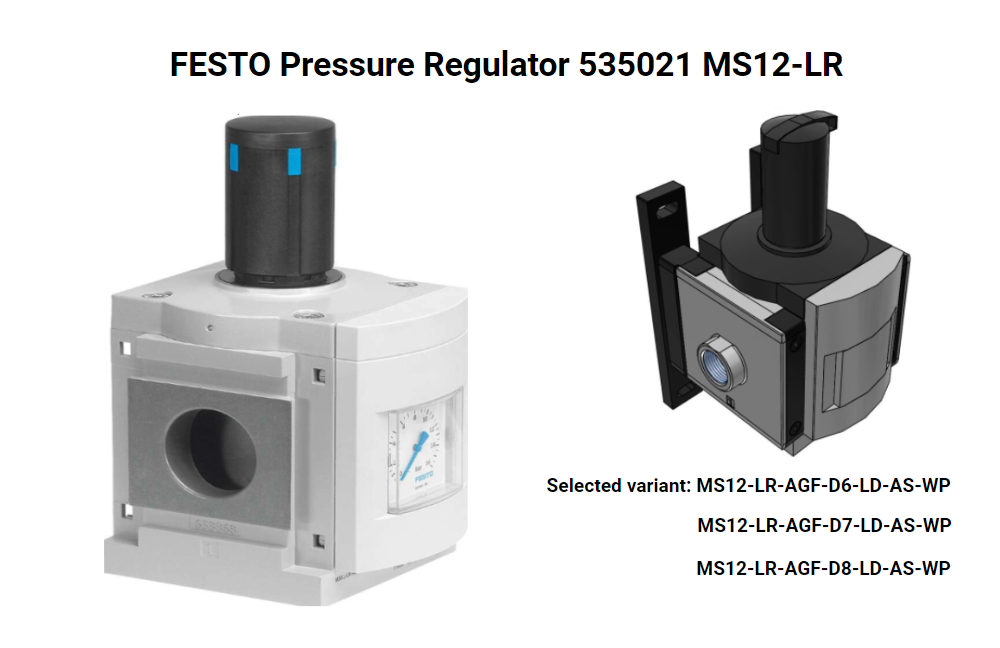

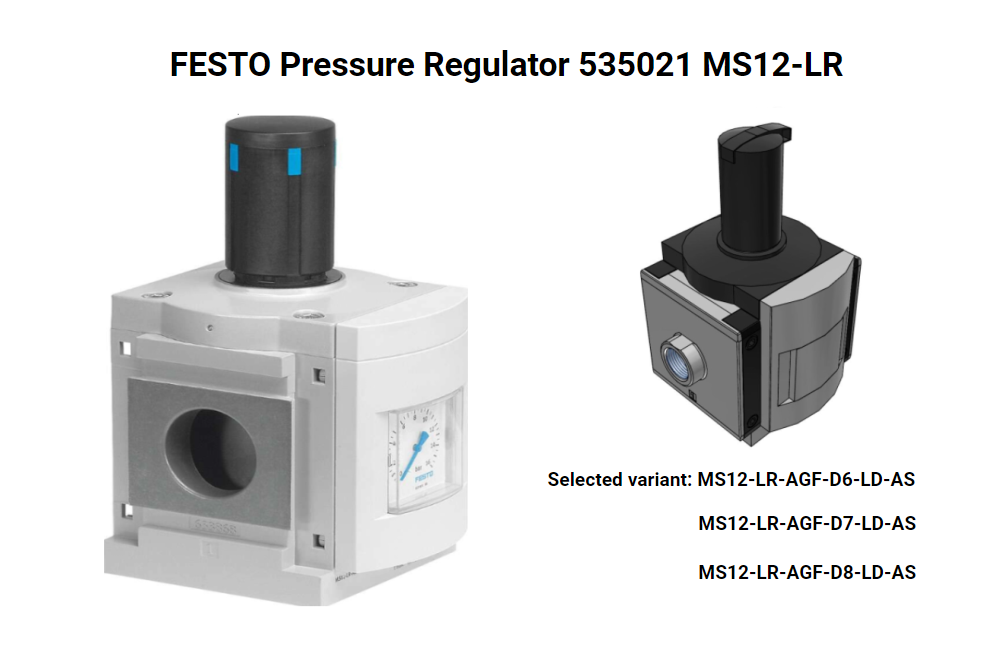

AGF	Sub-base G1	008	Rotary knob alternative

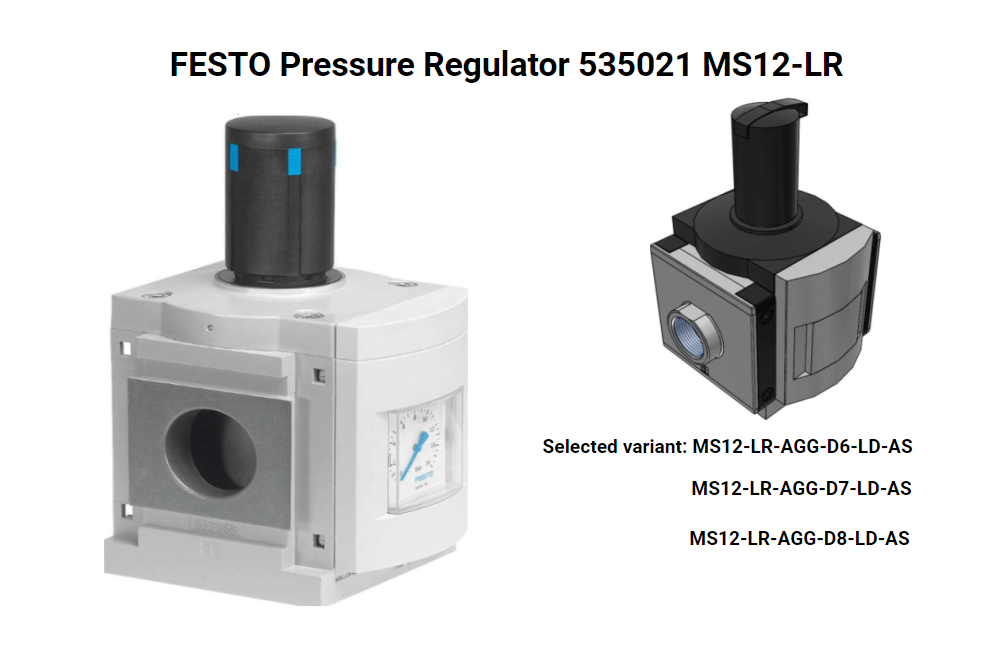

AGG	Sub-base G11/4		None

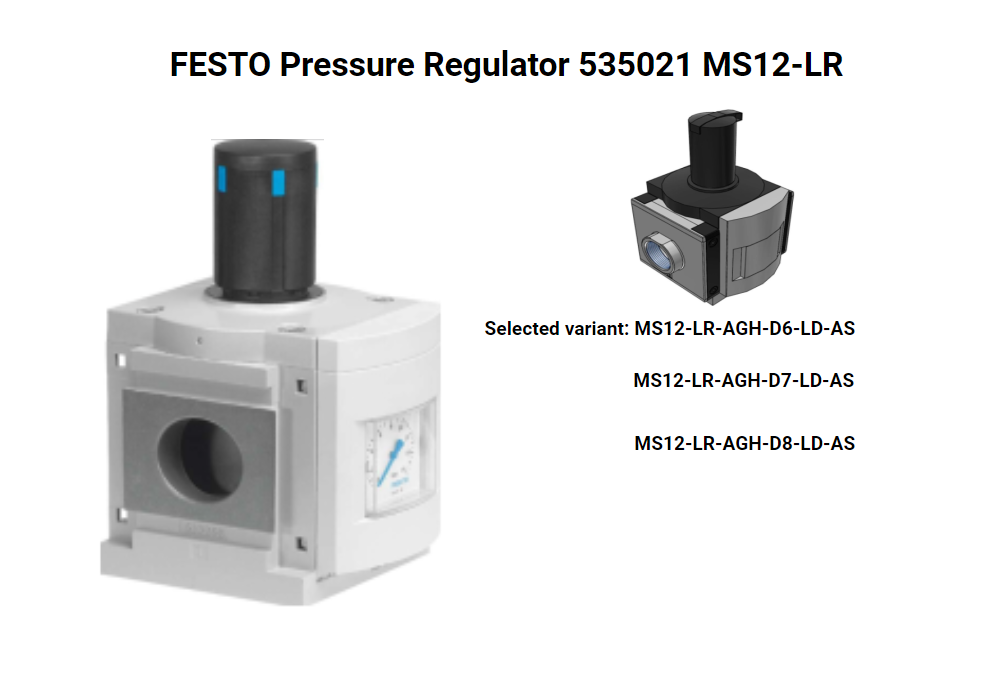

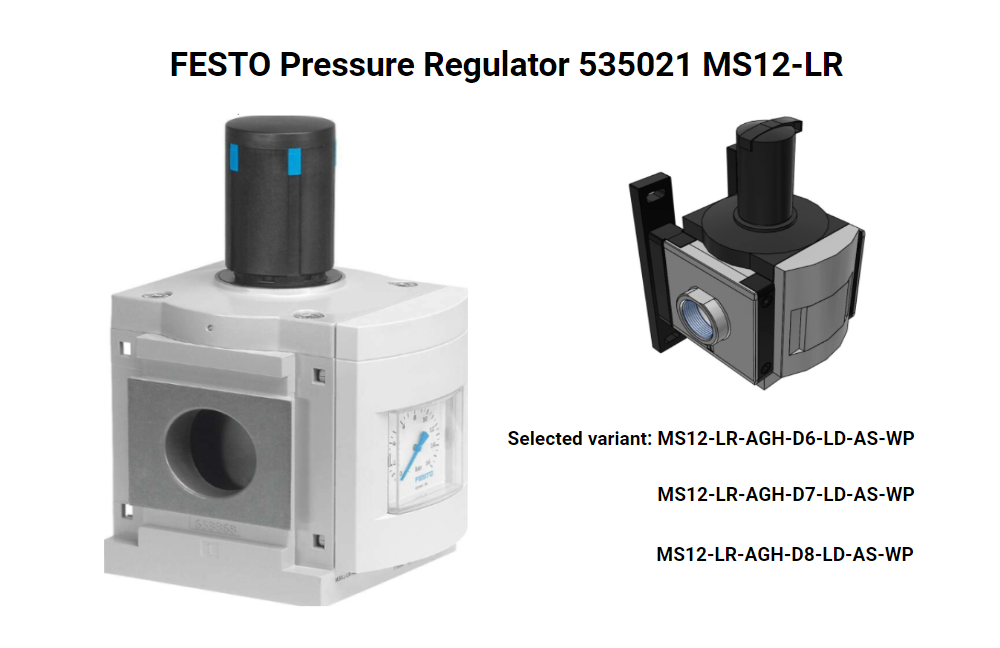

AGH	Sub-base G11/2	LD	Long rotary knob

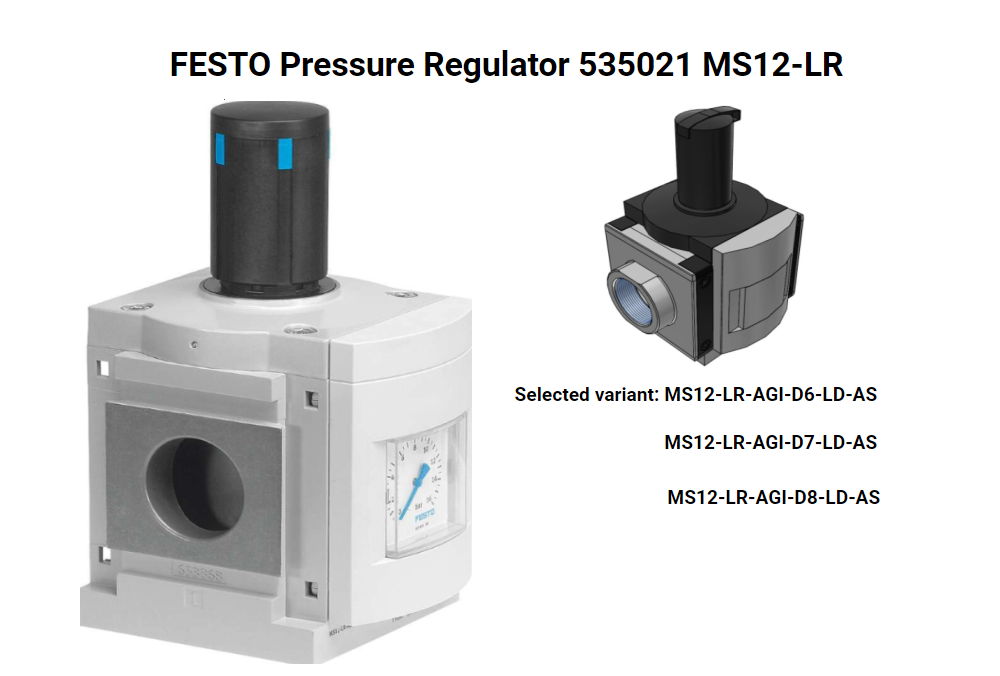

AGI	Sub-base G2

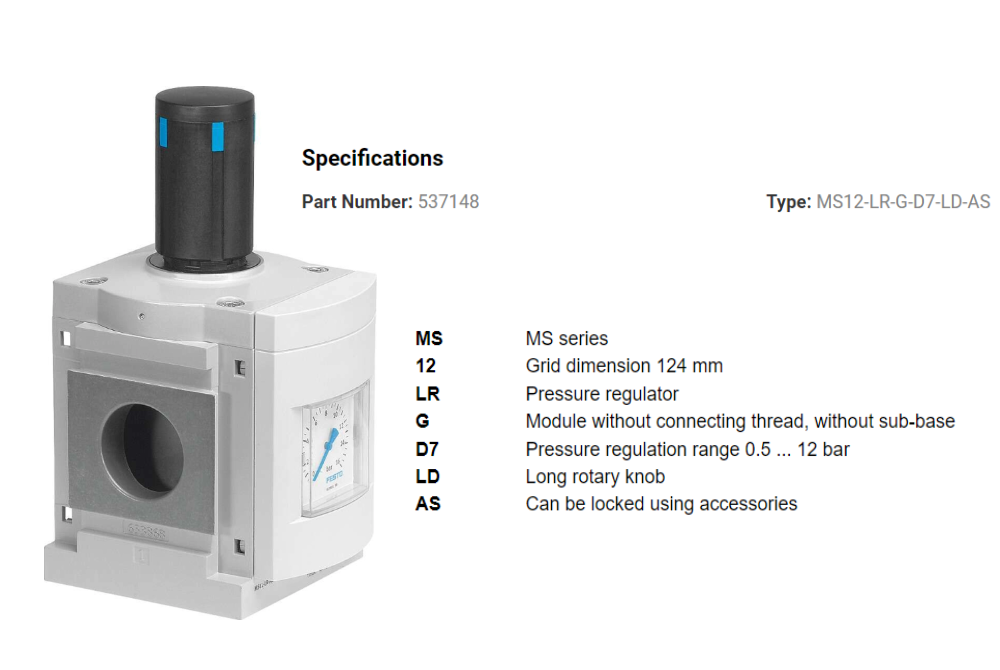

G	Module without connecting thread, without sub-base	009	Lockability
			None
005	Pressure regulation range	AS	Can be locked using accessories
D6	0.3 … 7 bar	E11	With integrated lock
D7	0.5 … 12 bar
D8	0.5 … 16 bar	010	Type of mounting
PO	Max. 16 bar, pneumatically actuated (pressure range		Without mounting bracket
	determined by pilot regulator	WP	Mounting bracket basic design
PE6	0.15 … 6 bar, solenoid actuated (pilot control by
	proportional-pressure regulator)	011	Flow direction
			Flow direction from left to right
		Z	Flow direction from right to left
