FESTO Filter Regulator MS 9

FILTER REGULATOR MS9-LFR

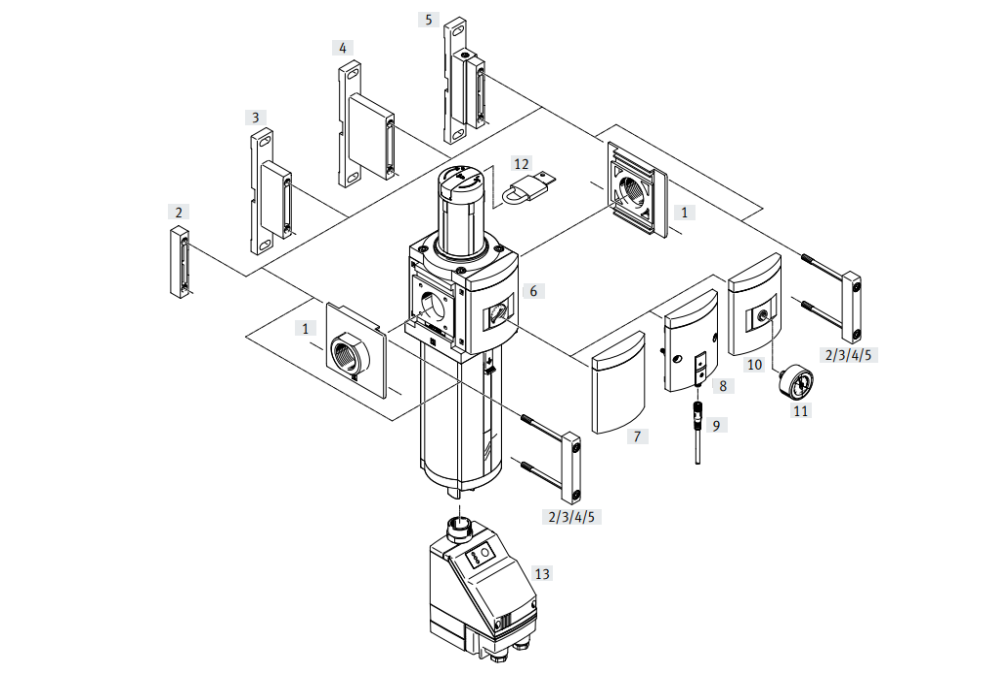

All compressed air preparation functions: pressure control, switch-on, filter control and soft start valves with safety function, filter, pressure and flow sensors, dryers, water separators, sensors, lubricators and distributors. The right solution for very task. In sizes 4, 6, 9 and 12.

Grid dimension 90 mm

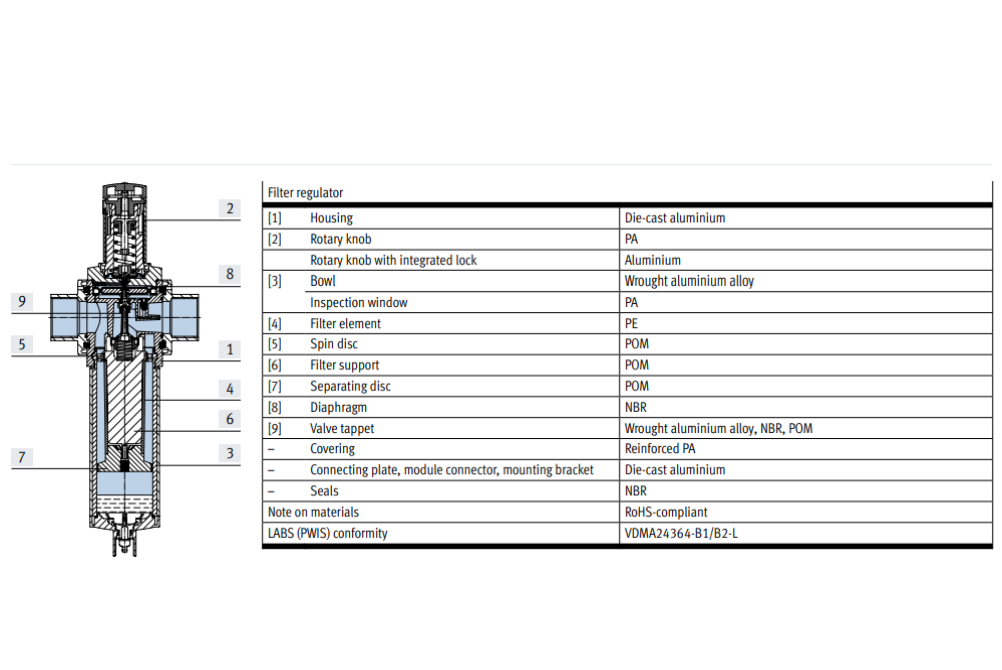

MS9-LFR: piloted or directly actuated filter diaphragm regulator
Good control characteristics with minimal pressure hysteresis and primary pressure compensation
Good particle and condensate separation
With or without secondary exhausting
High flow rate
Lockable rotary knob
Return flow option for exhausting from output 2 to input 1 already integrated

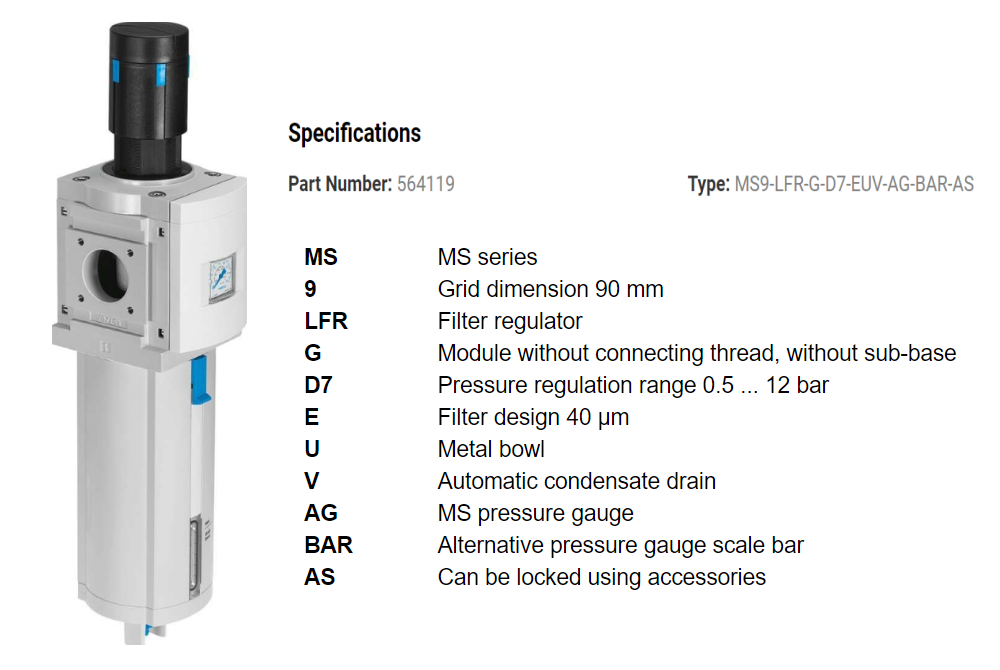

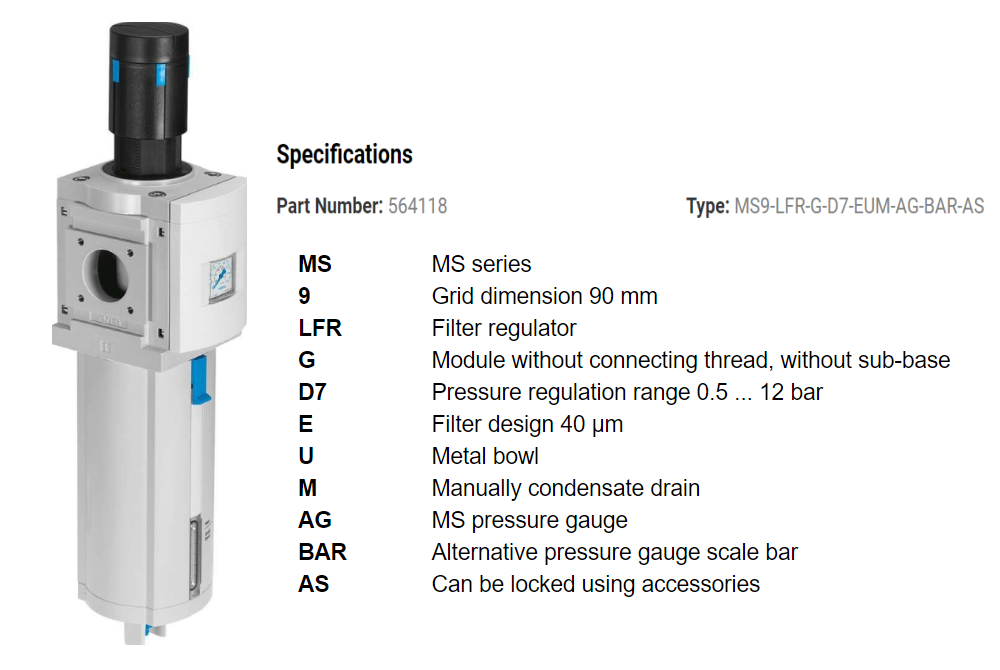

Type codes

001	Series	009	Regulator type
MS	MS series		Pilot actuated
		DI	Directly actuated
002	Size
9	Grid dimension 90 mm	010	Pressure gauge alternatives
			None
003	Function	AG	MS pressure gauge
LFR	Filter regulator	VS	Cover plate
		A4	Adapter for EN pressure gauge 1/4, without pressure gauge
004	Pneumatic connection	A8	Adapter for EN pressure gauge 1/8, without pressure gauge
3/4	Female thread G3/4	RG	Integrated pressure gauge, red/green scale
G1	G1	AD7	Pressure sensor with switching display, M8 plug,
AGD	Sub-base G1/2		threshold value comparator, PNP, N/O
AGE	Sub-base G3/4	AD8	Pressure sensor with switching display, M8 plug,
AGF	Sub-base G1		threshold value comparator, PNP, N/C
AGG	Sub-base G11/4	AD9	Pressure sensor with switching display, M8 plug,
AGH	Sub-base G11/2		window comparator, PNP, N/O
N1	1 NPT	AD10	Pressure sensor with operational status indicator,
AQR	Sub-base NPT1/2		M8 plug, window comparator, PNP, N/C
AQS	Sub-base NPT3/4
AQT	Sub-base NPT1	011	Alternative pressure gauge scale
AQU	Sub-base NPT11/4		MS pressure gauge
AQV	Sub-base NPT11/2	PSI	psi
G	Module without connecting thread, without sub-base	BAR	bar
NG	Module without connecting thread, without sub-base (inch)	MPA	MPa
3/4”	Female thread NPT 3/4
		012	Secondary exhausting
005	Pressure regulation range		With secondary exhausting
D5	0.3 … 4 bar	OS	Without secondary exhaust
D6	0.3 … 7 bar
D7	0.5 … 12 bar	013	Lockability
D8	0.5 … 16 bar		None
		AS	Can be locked using accessories
006	Filter design	E11	With integrated lock
C	5 µm
E	40 µm	014	Type of mounting
			Without mounting bracket
007	Bowl	WP	Mounting bracket basic design
U	Metal bowl	WPM	Mounting bracket for hooking in service unit components
		WPB	Mounting bracket for large wall gap
008	Condensate drain
M	Manually	015	EU certification
H	Semi-automatic		None
V	Automatic	EX4	II 2GD
E2	External fully automatic condensate drain, electric,
	110 V AC, terminals	016	UL certification
E3	External fully automatic condensate drain, electric,		None
	230 V AC, terminals	UL1	cULus ordinary location for Canada and USA
E4	External fully automatic condensate drain, electric,
	24 V DC, terminals	017	Flow direction
			Flow direction from left to right
		Z	Flow direction from right to left
