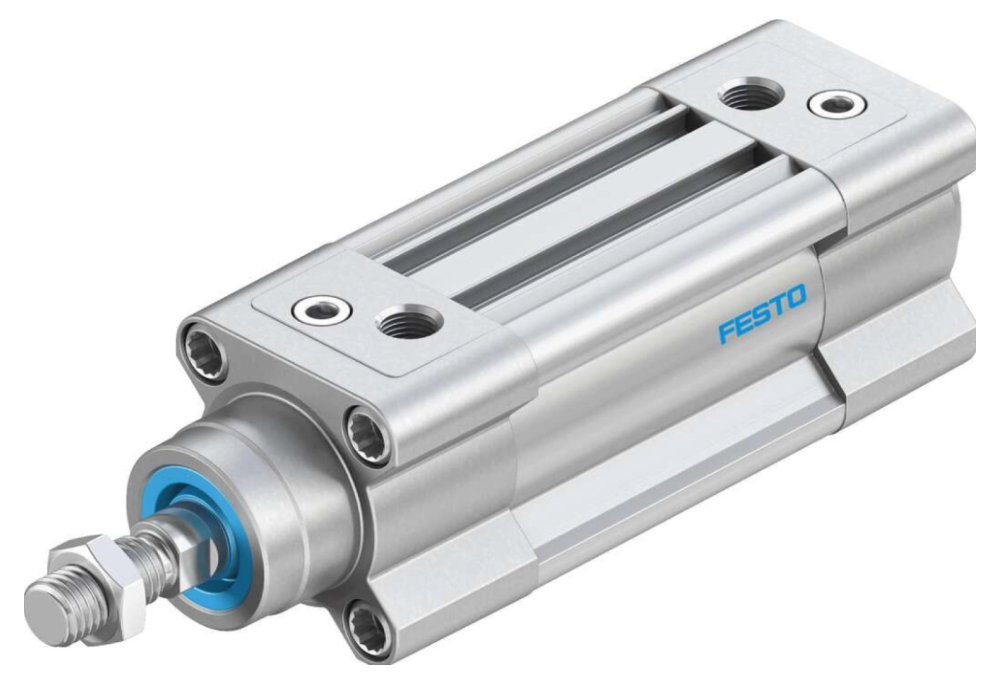

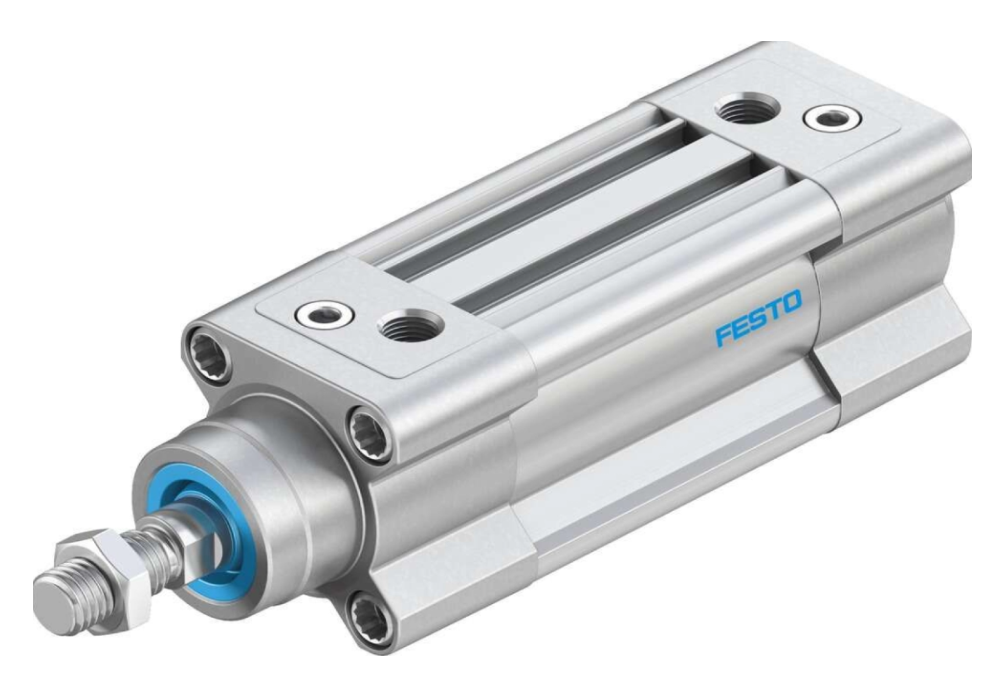

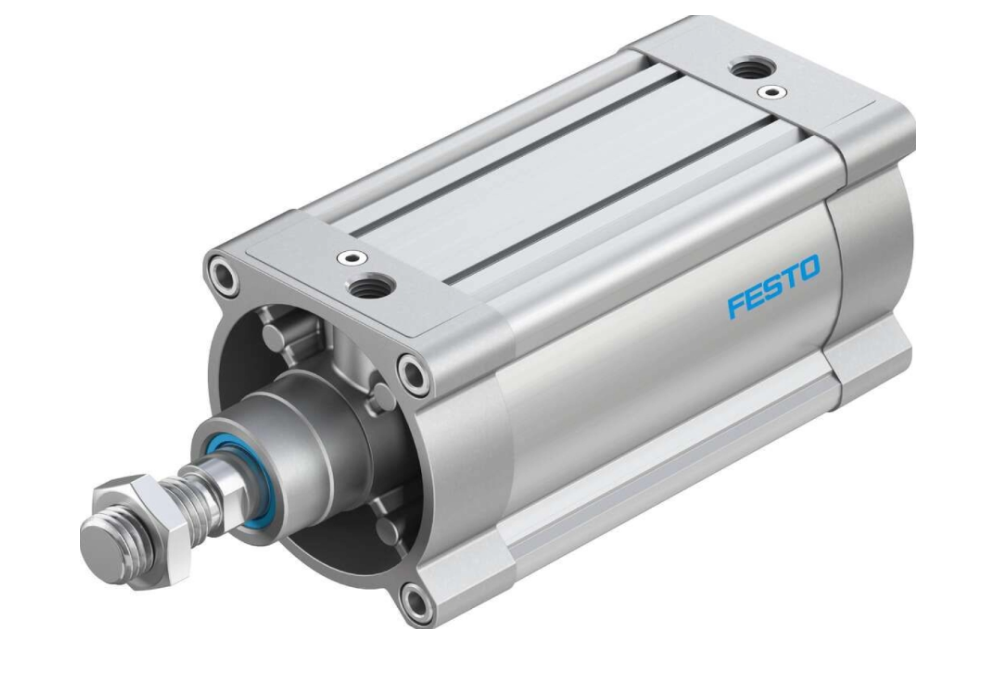

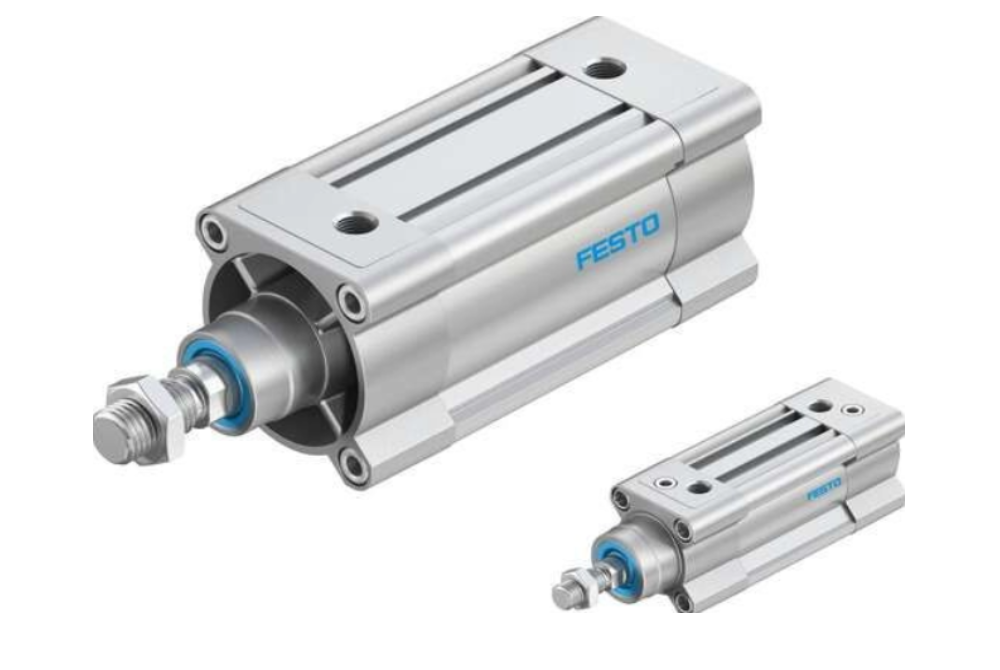

FESTO STANDARDS-BASED CYLINDER DSBC

Standards-based profile cylinder to ISO 15552 with a wide variety of mounting options.

ISO 15552 (ISO 6431, VDMA 24562)
Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes
Standard profile with two sensor slots
Wide range of variants for customised applications
Comprehensive range of mounting accessories for just about every type of installation
For position sensing
Variants recommended for production systems for manufacturing lithium-ion batteries

Type codes

001	Series	009	Piston rod thread type
DSBC	Standards-based cylinder,		Male thread
	double-acting, based on ISO 15552	F	Female thread

002	Protection against rotation	010	Profile type
	None	D3	Sensor slots on 3 profi le sides
H	Hydrolysis-resistant		Sensor slot on one profi le side only

003	Running characteristics	011	Cushioning
	Standard	P	Elastic cushioning rings/plates on both sides
L	Low friction	PPS	Pneumatic cushioning, self-adjusting at both ends
U	Uniform, slow movement	PPV	Pneumatic cushioning, adjustable at both ends
L1	Low friction for balancer applications
		012	Position sensing
004	Piston diameter [mm]	A	For proximity sensor
32	32
40	40	013	Standard
50	50		Based on ISO 15552
63	63	N3	Corresponds to ISO 15552
80	80
100	100	014	Corrosion protection
125	125		Standard
		R3	High corrosion protection
005	Stroke [mm]
20	20	015	Temperature range
25	25		Standard
30	30	T1	Heat-resistant seals max. 120°C
40	40	T3	-40 … +80°C
50	50	T4	0 … +150°C
60	60
70	70	016	Protection against particles
80	80		Standard
100	100	P2	Bellows on bearing cap
125	125
150	150	017	Scraper variant
160	160		None
200	200	A1	Increased chemical resistance
250	250	A2	Hard scraper
300	300	A3	For unlubricated operation
320	320	A6	Metal scraper
400	400
500	500	018	Special material properties
…	1 … 2800		None
		F1A	Recommended for production
006	Clamping unit		facilities of lithium-ion batteries
	None
C	Attached	019	EU certification
			None
007	End-position locking	EX4	II 2GD
	None
E1	Both sides	020	Piston rod extension
E2	With advanced piston rod		None
E3	With retracted piston rod	…E	1 … 500 mm

008	Piston rod type	021	Piston rod thread extension
	At one end		None
T	Through piston rod	…I	1 … 70 mm
